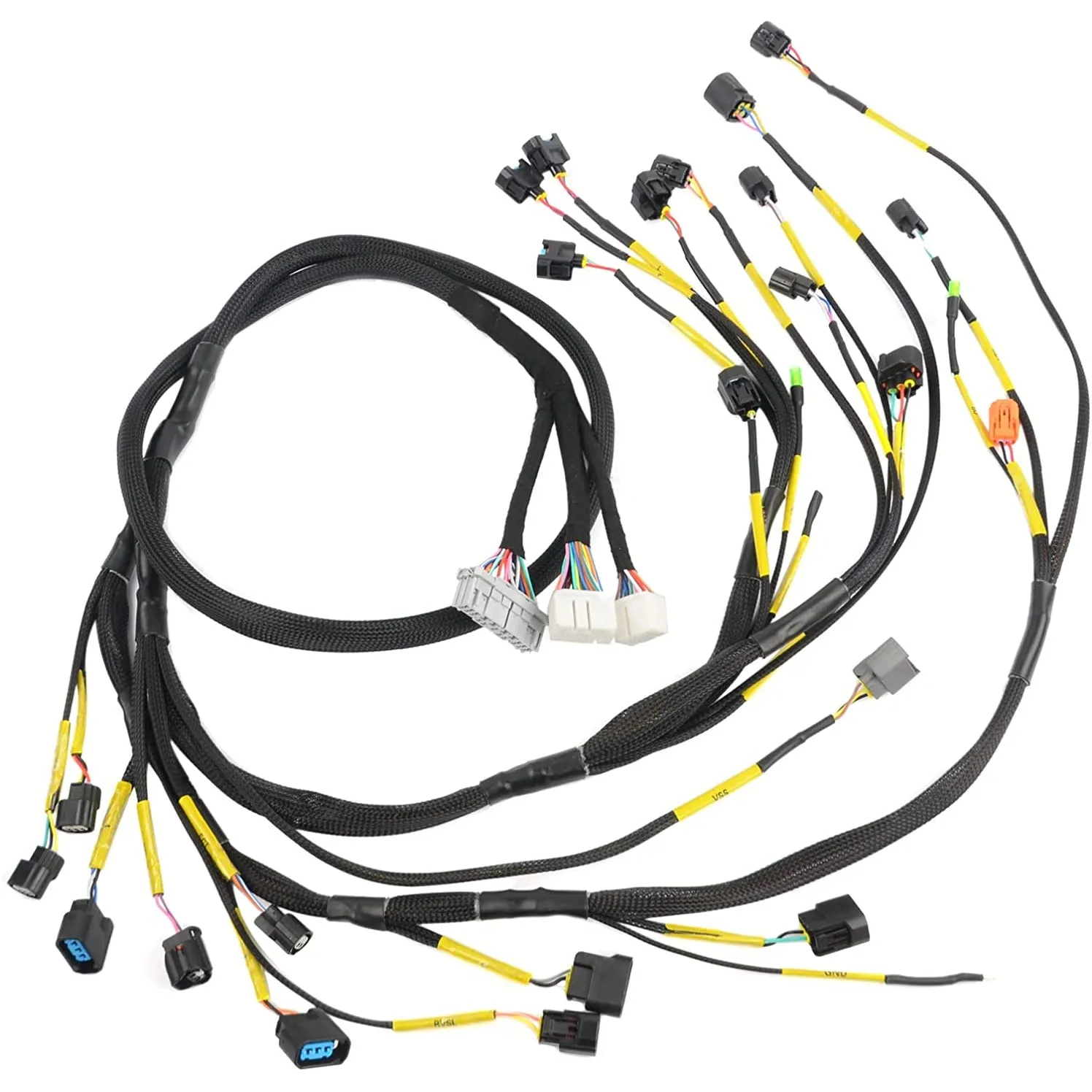

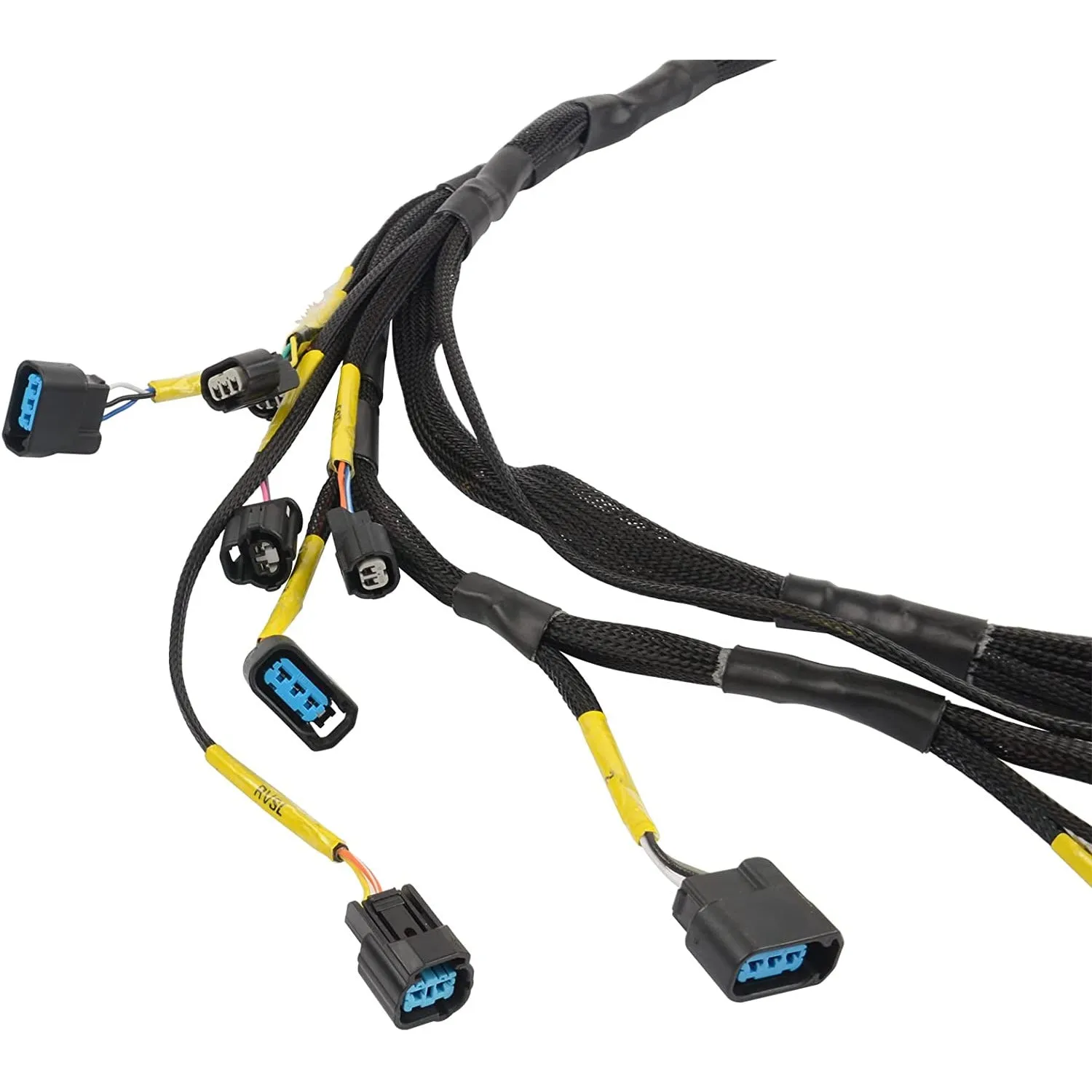

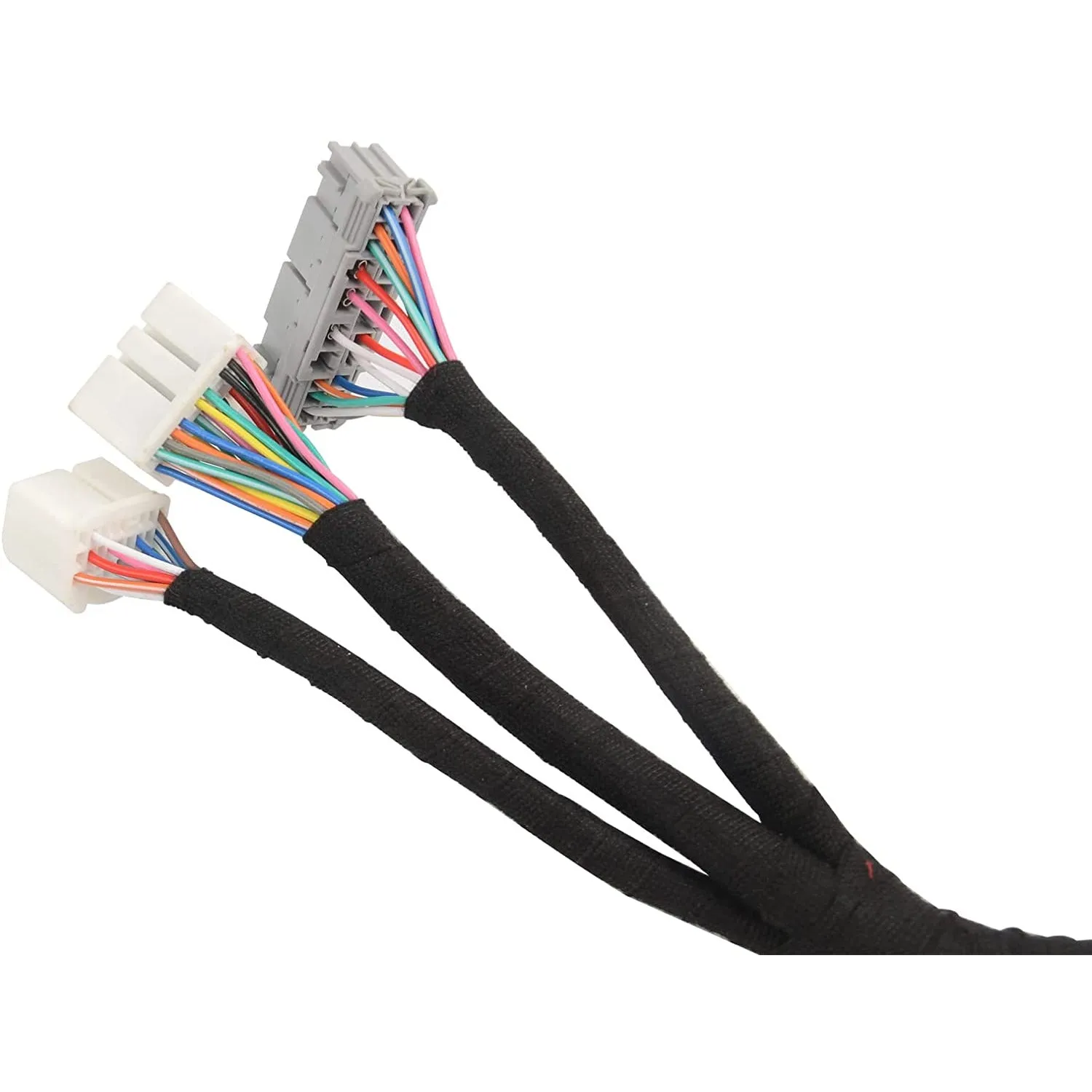

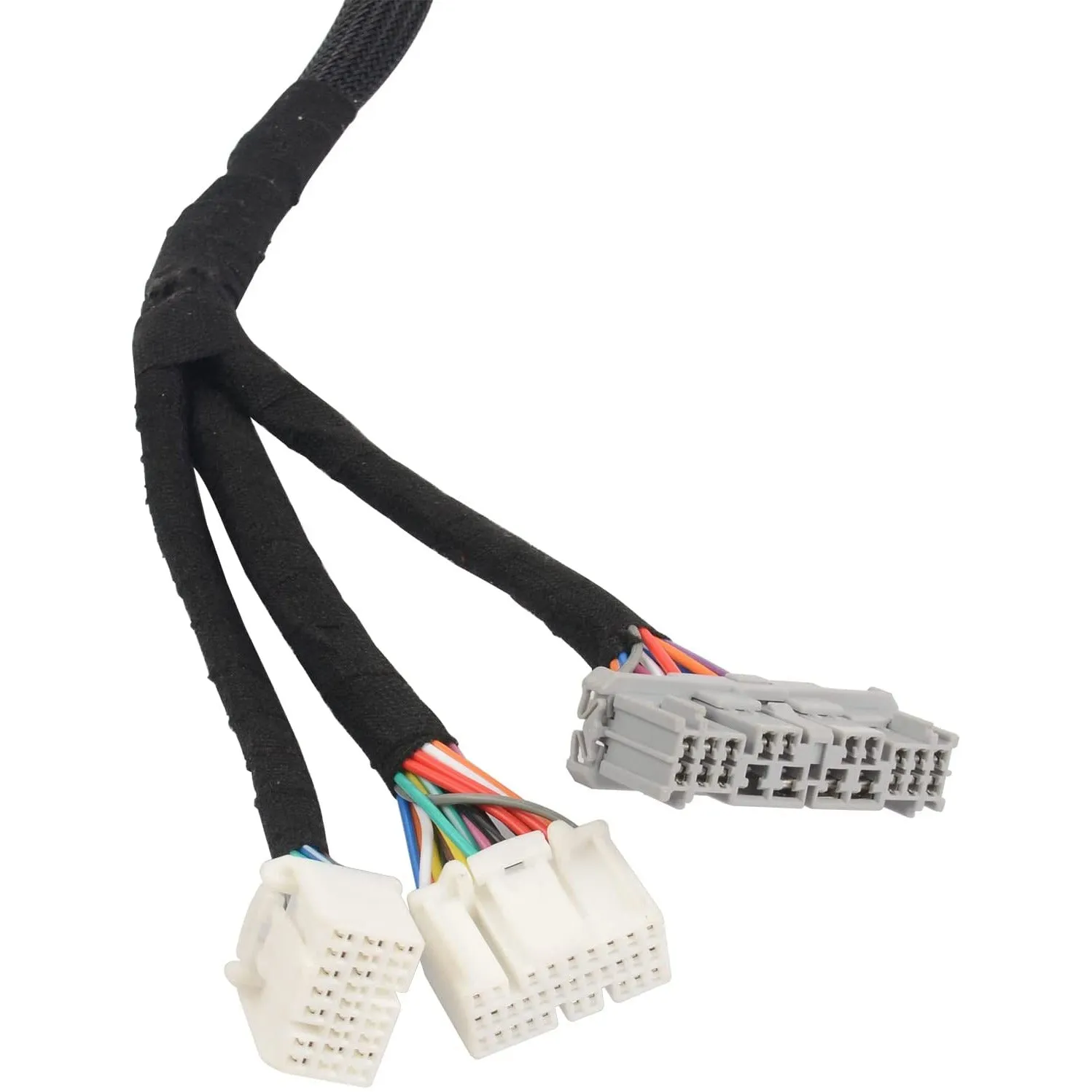

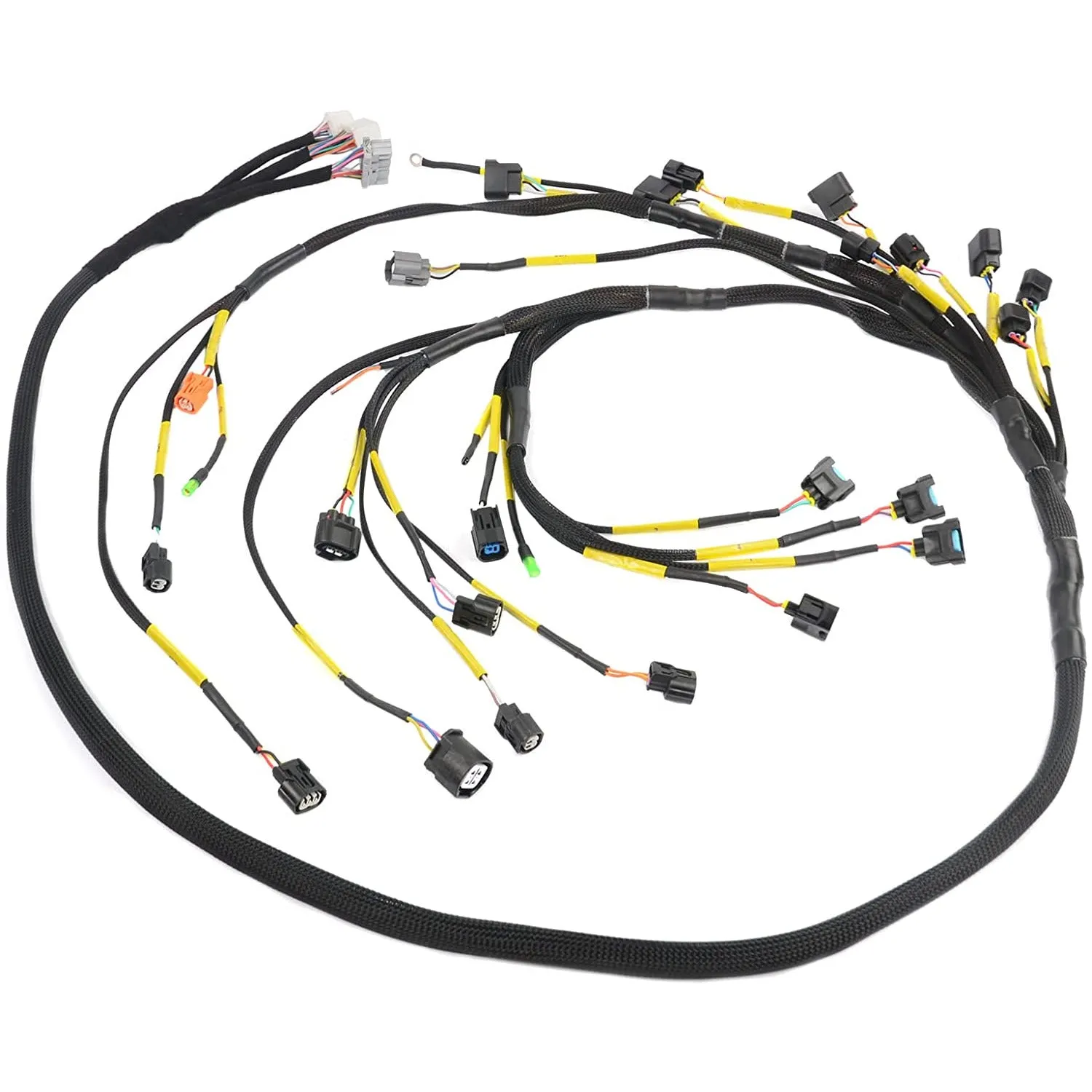

The Tucked Engine Harness is designed as a high quality replacement 02-04 RSX Type-S harness that offers a super clean look. We have made the harness with lots of features so it will work with nearly all K-Series engine swaps and the 02-04 RSX Type S. It includes all the necessary plugs with a handful of extras (Fan Switch, IACV, Temp Sensor, ETC).

Note:
*Will NOT fit RHD cars or RWD cars.

Features:
All plugs included except EVAP and AC
Covering is gas and diesel resistant and rated for -55° C to 150° C (-67°F to 320°F)
SAE Certified Automotive Grade Wiring
All plugs are labeled
Tucked design
Harness runs over valve cover (Can be covered with coil pack cover)
Injector wiring runs from under manifold between middle runners.
Ground wire relocated to stud under coil pack cover (instead of front of the valve cover)

Includes single wire temp sensor wire (For k-swap cars stock cluster)
3 Aux wires run from ECU to under intake manifold. Two ECU pins pre-installed.
Wiring long enough for both VSS low frequency or high frequency (High Frequency transmissions will require repining plug and slight modification to VSS)
Each harness is inspected and tested before shipping.
RSX injectors plugs come standard
